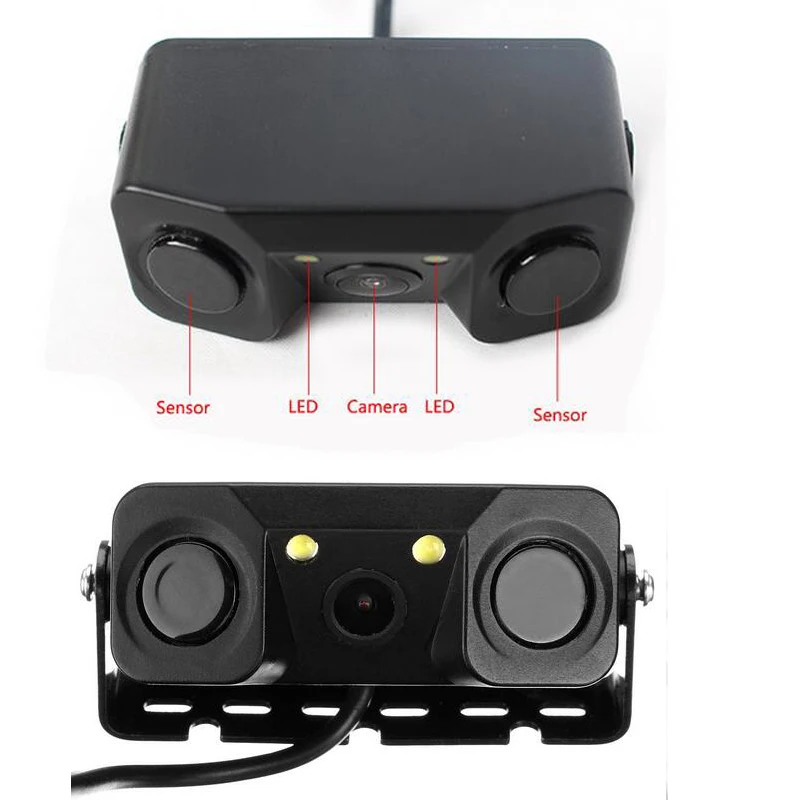

new-3in1-Video-Parking-Assistance-Sensor-Backup-Radar-With-Rear-View-Camera foldable monitor
Item Type:Parking Assistance Item Height:2.5 cm
Wire or Wireless:Wire Display:LCD
Item Width:3.0 cm Sensor Number:1
Special Features:Parking Camera Sensors Item Length:6.5 cm
Parking Assistance Type:Parking Sensor System Material Type:ABS
Item Weight:200 g Car Maker:fit for all cars
CAR REAR VIEW REVERSE BACKUP SONY CCD CAMERA FORall cars
Combination of features:
1. Display mirror image and distance on the monitor at the same time, if you connect a DVD player or a car automatic monitoring.
2. keep you safe parking
3. This reversing radar can also be a speaker Bibi remind you, because of the distance of 1.5 meters.
Product Features:
1. Dual-Core
2. Do not show
3. Boost buzzer alarm
4. 0.3-1.5m detective distance
5 can be associated with a rear view monitor and display range of the display.

Specially designed
All cameras will send you a check before
specification:
Image Sensor: 1/4 "Color CCD
TV system: NTSC / PAL   (Pal version should be required)
Effective Pixels: 728 × 512
Resolution: 480 TV lines
Video Output: 1.0VP-P, 75
Electronic Shutter: 1/60 (NTSC) -1 / 10000S, 1/50 (PAL) -1 / 10000S
Waterproof grade: IPX 68
Operating temperature: -20 ° C~ + 80 ° C RH95%
Working Power (DCV): 1
Current consumption: 90 mA (maximum)

Setting:
1. Set the camera to your car's license plate area
2. Adjust the optimal position of the camera lens.
3. Plug the power cord (red and black) to connect to your car light power cord.
4. Video (yellow) is connected to the monitor.
TV car camera system:
In general, most monitors support NTSC and PAL TV system. So it does not matter the camera PAL or NTSC system.
However, if you are not sure, check your monitor supports NTSC or PAL. If your monitor supports only NTSC or PAL, please send us your payment, you need a message on a working day, the television system. Or we will randomly send NTSC or PAL video camera







Foldable Monitor Specification:
1.Housing material:ABS plastic                            2.Screen size: 4.3 inch
3.Pixel: 480(W)×RGB×272(H)                              4.Contrast: 350:1
5.Aspect ratio: 16:9                                                 6.Power supply: DC 12V
7.Monitor folded size: 5.2 * 4.5 * 0.98 inches     8.Video Input
9.AV Signal auto detect power on/off                  10.Auto switch when reversing
